Description

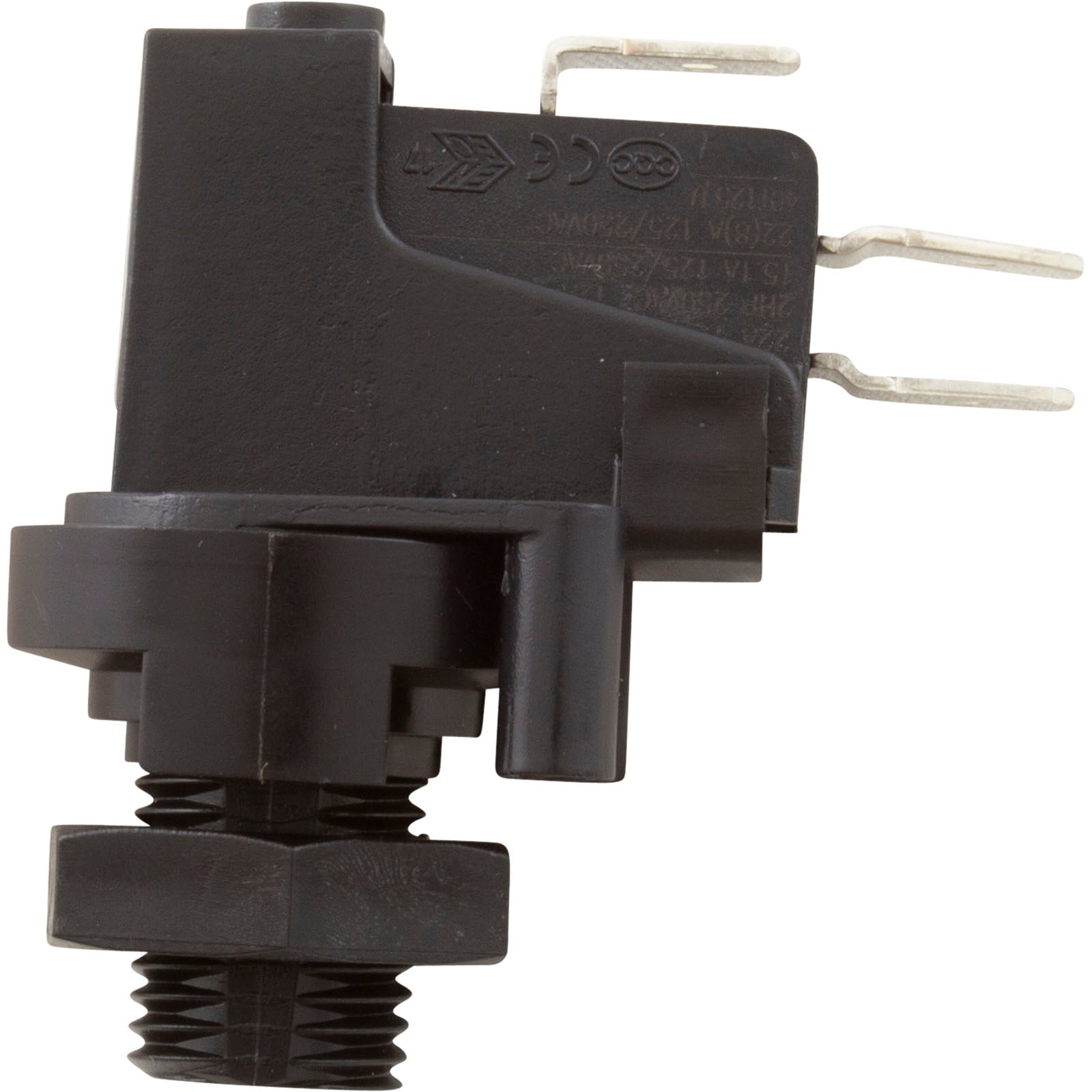

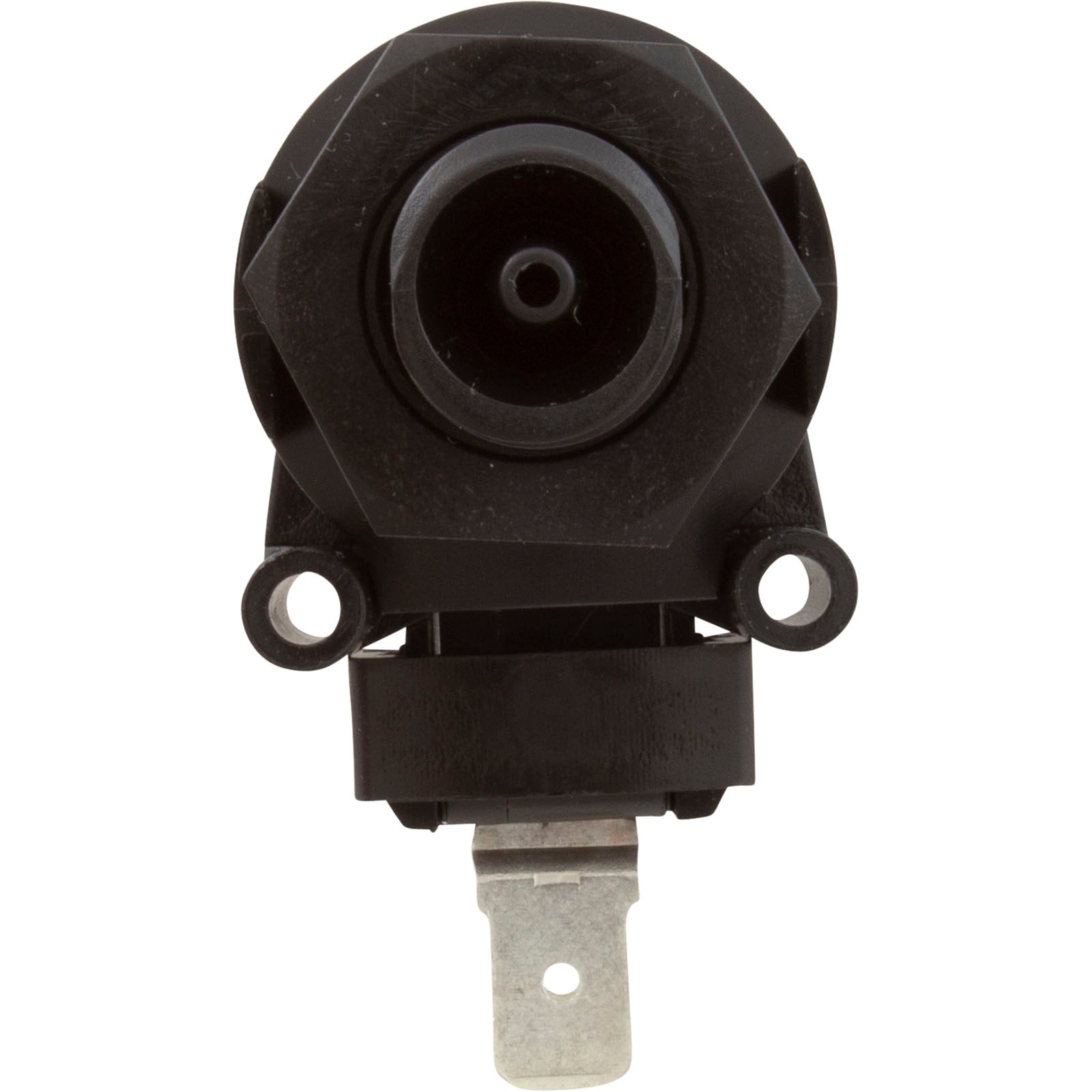

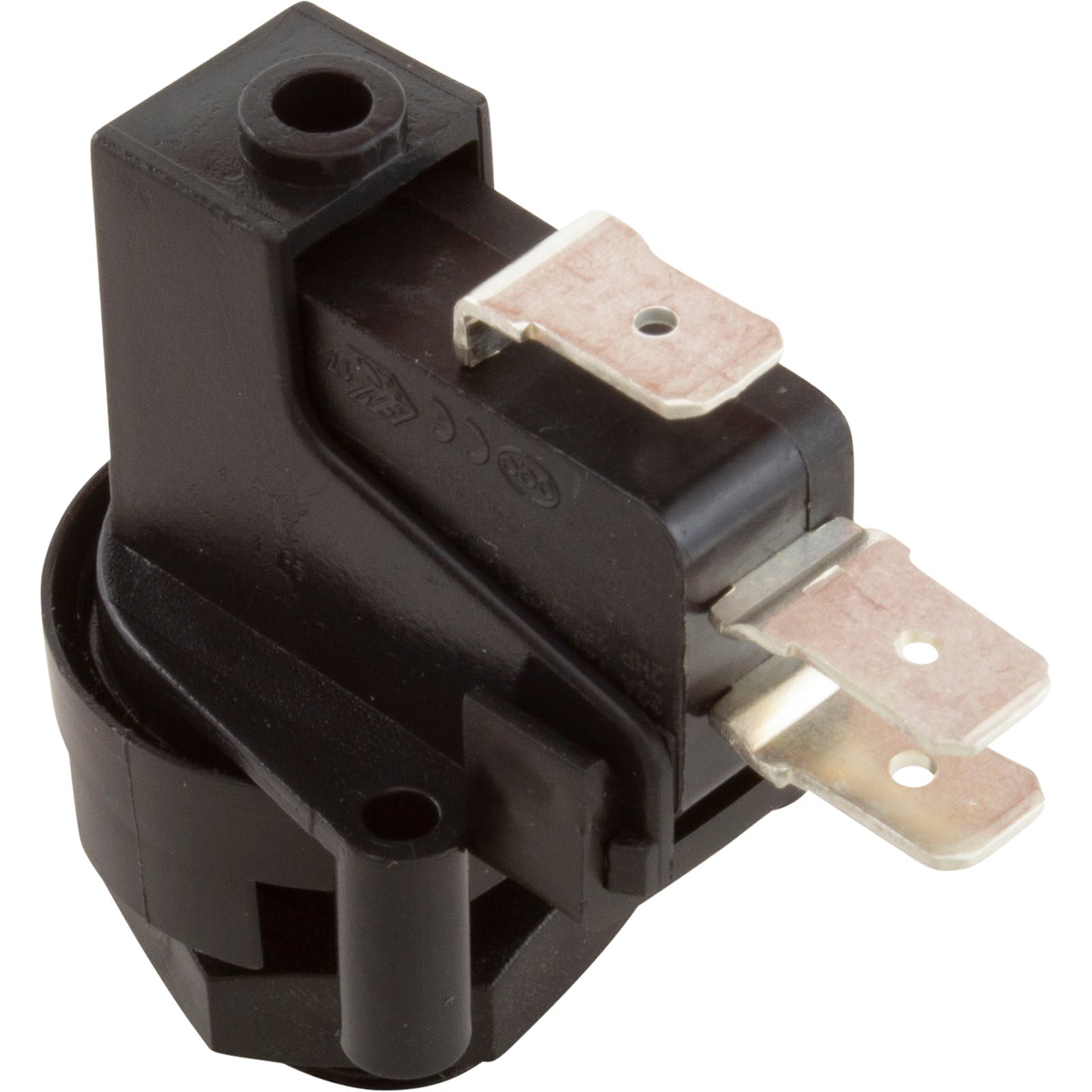

This single pole double throw latching air switch is the workhorse of the industry.
Rated at 22 amps, this switch can handle some of the larger demands a pool or spa may have.
Hole size required for this switch is 9/16"
Air tubing connect size for this switch is 1/8" barb.
If the flat spots on the shaft of the switch don't line up with your old switch you can just drill the hole out and make it round.
This air switch was used in many BRETT AQUALINE spa packs over the years.
This switch had many SKUs for the last 50 years since its inception.
Other SKUs
- LF40-01
- 860014-3
- 860016-3
- 390651
- 5190-107
- 594392035
- 860014-0
- 860016-3
- 9200-30A
Included in the box:
- (1) JAG 4X Air Switch
- (1) 6' length of vinyl air tubing
